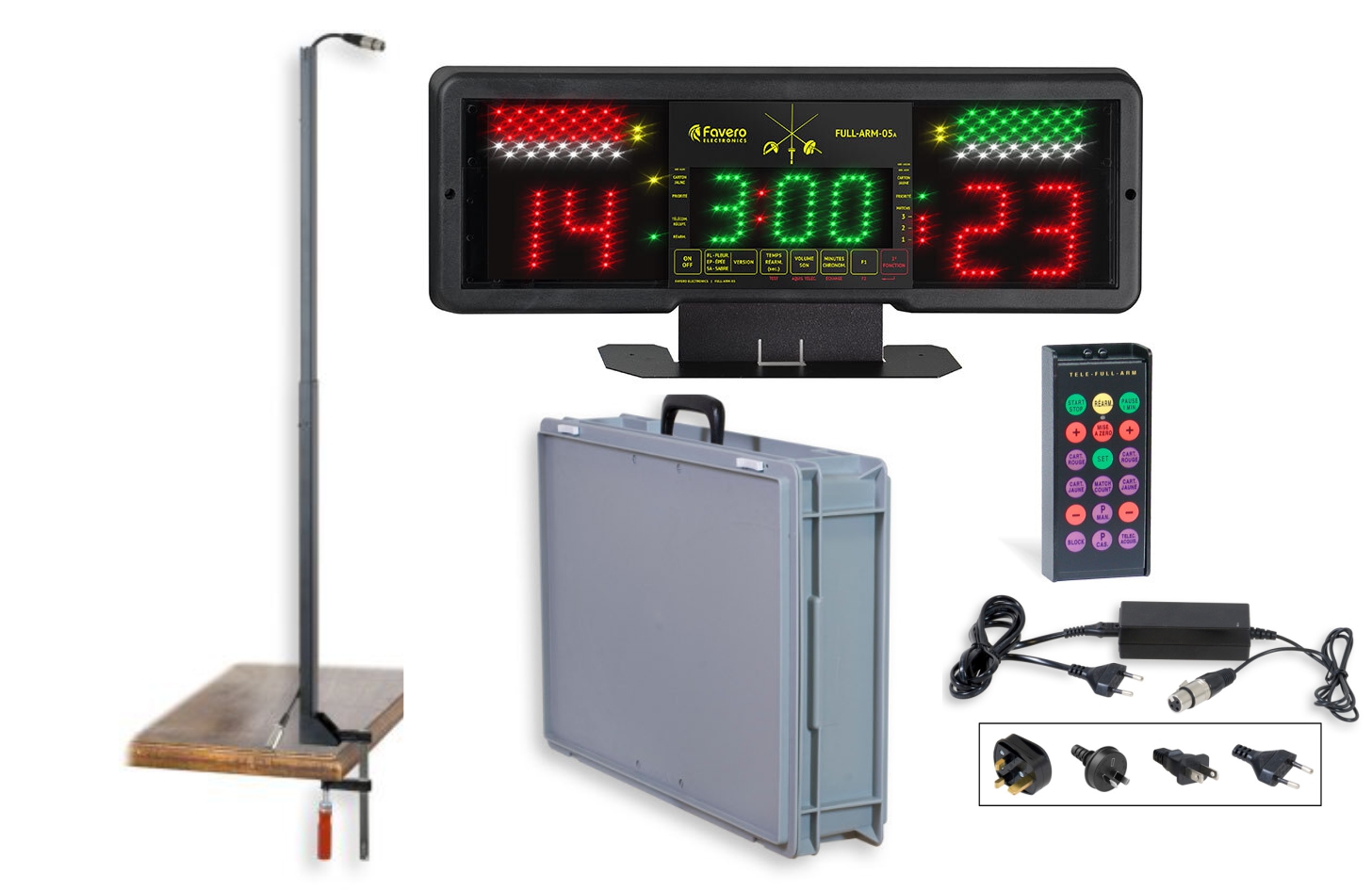

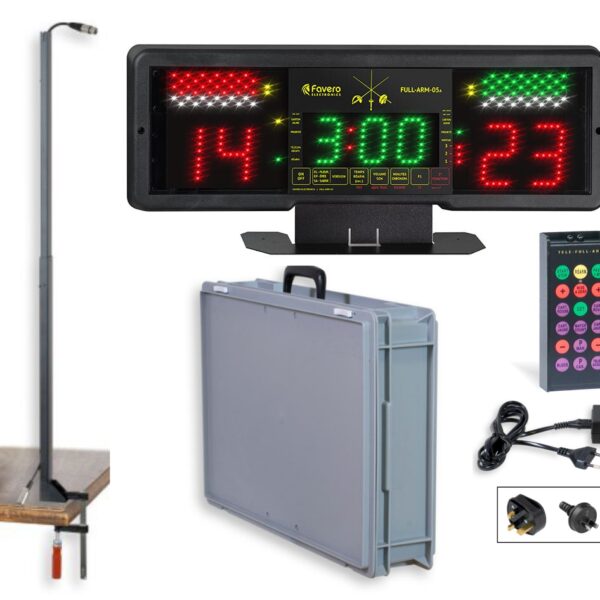

Favero FA-05 (FULL-ARM-05) full package

• Approved by the F.I.E.
• 3-gun check. Manual or automatic reload.
  • Selecting two programmes for the sword
  • Choosing a programme that is useful for teaching épée, one that indicates hits in quick succession.
  • The special control system prevents the annoying constant noise from the sabre and dagger when the fencers are not connected.
• The FULL-ARM-05 programme can be easily updated by replacing a single electronic component.
• Results: The digits are 7 cm high and can be read from a distance of 25–30 m.
• Stopwatch: The digits are 5.2 cm high and legible from a distance of up to 15–20 metres. Start/stop, 1-minute pause, charging time. The colour of the two illuminated dots between the minutes and seconds clearly and immediately indicates the chronograph’s status. Green = running; Red = stopped.
• Matches. Indication of the fencer’s priority, via manual and random selection. Indication of penalty cards. A red card automatically adds to the opponent’s score.
• Membrane keyboard: robust and reliable (5 million keystrokes per key).
• The volume can be adjusted to three levels. Different events are indicated by different sound signals: hits, end of time, and faults.
• The device uses two data-line sockets to connect the light repeaters. The number of data-line sockets can easily be increased to four using an inexpensive adapter. For greater safety, the data line sockets are electrically isolated using optocouplers.
• The cables connecting to the repeaters, which are usually supplied with the repeaters themselves, are standard telephone cables that can easily be extended to 100 m if necessary.
• All visual indicators on the FULL-ARM-05, including the indicator lights (one red, one green and two white lights), consist of high-efficiency LEDs (average lifespan: 100,000 hours). This eliminates the problems associated with short lifespans and the replacement of standard filaments.
• Power supply: 12 VAC or 12 VDC. Power consumption is minimal, thanks to the exclusive use of high-efficiency LEDs. The maximum total power consumption, with two coloured lamps, is just 4 watts. The FULL-ARM-05 can also be supplied with a small, rechargeable lead-acid battery, 6–7 Ah. In this case, it will last for approximately 30 hours before requiring recharging. We can also supply the battery and the battery charger.
• Low battery warning.
• The case, made from impact-resistant plastic (the front section is made of polycarbonate), even protects against accidental knocks from weapons.
• Dimensions: Width 56 cm, height 23.5 cm, depth 8.5 cm.
• Two-year warranty.

Remote control – supplied as an accessory with the FULL-ARM-05.

• It controls the stopwatch, the scorekeeper, the advance, the matches, the penalty cards and priority.
• Maximum range: greater than 20 m if positioned directly in front of the FULL-ARM-05.
• Innovative transmission system: Each remote control has a unique, non-replicable and unhackable transmission code. By simply pressing the appropriate button, any FULL-ARM-05 can be programmed to recognise the remote control, but only one remote control can be used at a time.

This service offers a number of benefits:

1. Any device can be paired with any remote control and recognised simply by pressing two buttons – one on the device and one on the remote control
2. Two remote controls can never operate the same device, thus eliminating any potential unauthorised interference;
3. It is not necessary to set the same code on the remote control and the Kar-05 unit, nor is it necessary to check whether this code differs from the others; and;
4. There is no limit on the number of devices within the same fenced-off area.

• A red light indicates that the remote control is working correctly, whilst the yellow light on the FULL-ARM-05 indicates a good signal.
• The remote control operates using infrared rays. The advantage of infrared transmission is that it is not affected by external factors, unlike radio-controlled gearboxes, whose operation can easily be disrupted by transmitters operating on the same frequency, even if they are located at a great distance.
• Remote control power supply: The remote control is powered by a 9-volt alkaline battery. It can transmit approximately 150,000 commands.
• A sturdy aluminium casing in a compact size: 11 x 4.8 x 1.2 cm. Weight: 170 g.
• A robust membrane keyboard.
